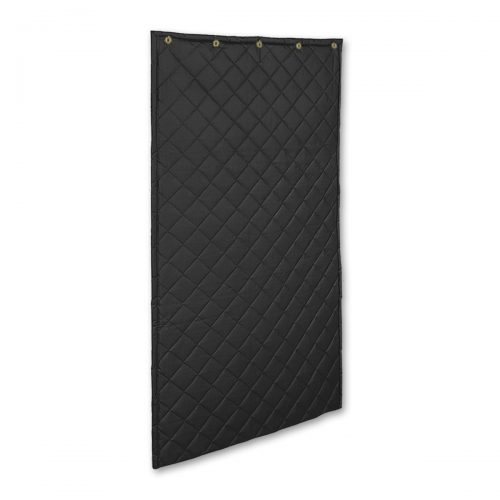

Black Industrial Sound Proof Curtains- Dual Sided MLV

Black Industrial Sound Proof Curtains- Dual Sided MLV

In Stock

Precio habitual $379.99

Ships in 7 - 10 Business $750 MINIMUM ORDER days.

SKU : SCC NT 4-6x8BL

vendor : Steel Guard Safety

Product Type : Industrial Curtains & Barriers


-
+
in stock Agotado

Black Industrial Sound Proof Curtains - Dual Sided SCC-10 and SCC-11


Steel Guard Safety's Sound Shield Industrial Noise Control Curtains are designed with convenience in mind. These curtains feature top grommets for easy hanging and side hook and loop velcro attachments for modular width adjustment. Install them as stationary sound barriers around industrial equipment or machines, or enhance their versatility by adding dual curtain track hardware (available separately) for a movable barrier solution. Experience the effective noise control and flexibility that our curtains provide..

The Sound Shield SCC-10 and SCC-11 Combination Sound Blanket is a versatile panel designed for interior applications, offering effective sound blocking and absorption. This curtain features a 1 lb/sq ft or 2 lb/sq ft mass loaded vinyl interior encapsulated with 1" quilted fiberglass batting on both sides, providing superior sound absorption and attenuation. Perfect for creating a quiet and peaceful environment.

Generally used to temper and block noise in industrial environments, these curtain-blankets are commonly used as separator walls or divider partitions and to line the perimeter of an interior wall. SCC-10 & SCC-11 Sound Shield Soundproof Curtains are Class 1 fire-rated and are a double duty sound blanket in that they work for both absorbing and blocking sound.

CALL FOR CUSTOM SIZES

Sound Blanket Panels

      • Sound blanket panels in 4′ widths with 8', 9' and 10' heights or custom lengths as required (Call)
      • #4 Grommets along top hem
      • Mating Velcro® on vertical edges (This allows the blankets to overlap and create a sound seal.)
      • Track Hardware Kit Option - Includes Qty 1 - 4 ft Straight Track, Qty 5 Nylon Rollers, Qty 2-End Stops, and Qty 2-Universal Mount In-line Connectors (for Threaded Rod, Chain, or Wall Mounting)
      • Track Kits Connect Modularly for Whatever Length needed.
      • Other Configurations Available (Call)



            SOUND ABSORPTION (HZ) PER ASTM C423

Model Number

125

250

500

1000

2000

4000

NRC

SCC-10 & SCC-11

.18

.62

.89

.84

.60

.45

.75



            SOUND TRANSMISSION LOSS (HZ) PER ASTM E90 & E413

Model Number

Barrier

125

250

500

1000

2000

4000

STC

SCC-10 1 lb. 12 16 27 40 44 43 29
SSC-11 2 lb. 19 22 28 40 56 61 33




Ships 7 - 10 Business Days










SCC-10





 SCC-11                                               ,



SIZES W x H   4 ft x 8 ft,  4 ft x 9 ft,   4 ft x 10 ft,  or Custom4 ft x 8 ft,  4 ft x 9 ft,  4 ft x 10 ft,  or Custom
COLORGrayGray
MATERIAL 1 in Quilted Fiberglass on Front plus 1 lb / sq. ft. Mass Loaded Vinyl Interior plus 1 in Quilted Fiberglass Back.1 in Quilted Fiberglass on Front plus 2 lb / sq. ft. Mass Loaded Vinyl Interior plus 1 in Quilted Fiberglass Back.
GROMMETS

1 ft O. C. on Top (#4)1 ft O. C. on Top (#4)
VELCRO2 in Hook & Loop Front & Back on Sides2 in Hook & Loop Front & Back on Sides
NOISE RED. COEFFICIANT (NRC).75.75
SOUND TRANSMISSION LOSS (STC)2933
WITHSTAND TEMP.180 Degrees F    180 Degrees F
CHEMICAL RESISTANCE

Water & MildewWater & Mildew
WEIGHT

1.50 lb / Sq. Ft2.50 lb / Sq. Ft
FLAME RESISTANCE ASTM E-84 Class I



 ASTM E-84 Class I

Industrial Soundproof Curtain Extended Info
