Industrial Noise Control Acoustic Wall Blanket

Industrial Noise Control Acoustic Wall Blanket

In Stock

Precio habitual $69.30

Ships in 5 - 8 Business days.

SKU : SCC AB 4.5x4

vendor : Steel Guard Safety

Product Type : Industrial Curtains & Barriers


-
+
in stock Agotado

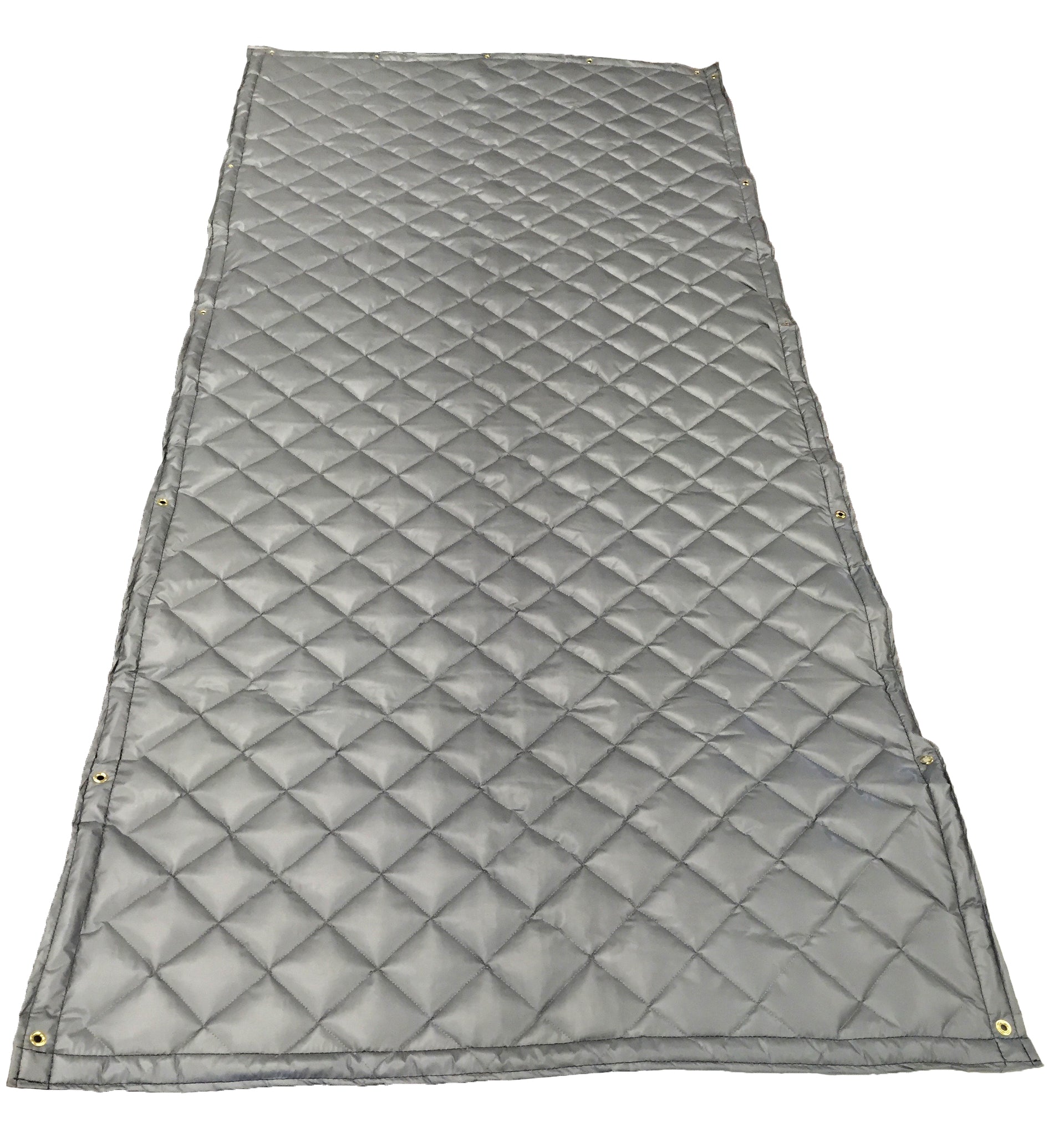

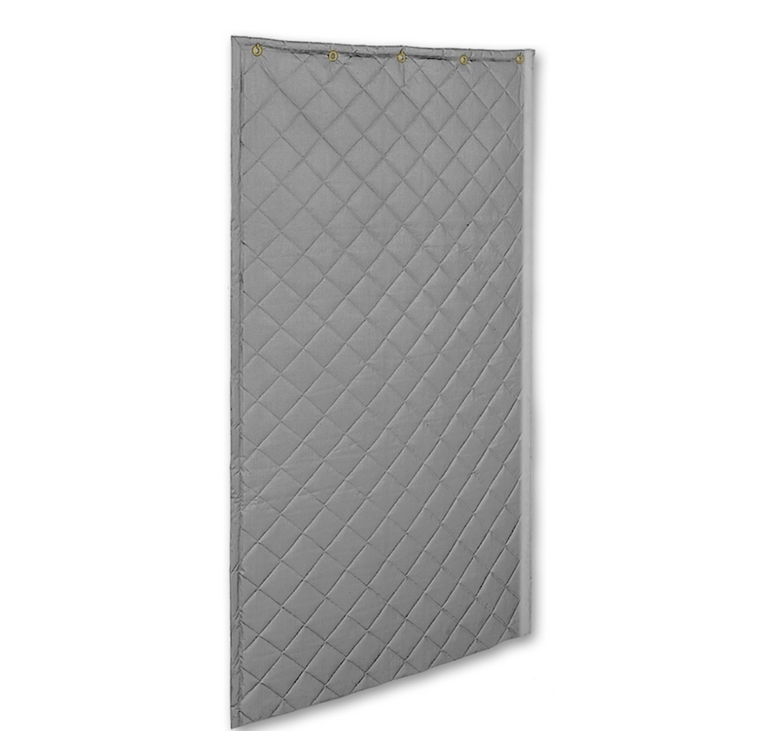

Acoustic Wall Blankets Reduce Noise in Industrial Commercial & Studio Environments

Steel Guard Safety's Sound Shield Acoustical Wall Blanket features easy attachment with brass grommets. Quilted vinyl on one side w a 1" thick or 2" Thick Quilted Fiberglass Panels to choose from. This lightweight easy to move substrate features up to 21 dB of noise reduction at 4000 Hz  with 1" Thick (NRC-.75) and 32 dB noise reduction with the 2" Thick Panels (NRC-.86) Quilted Vinyl side is resistant to grease, oil, water, and other chemicals. Meets NFPA-701 & ASTM E84 Class 1 flame resistance standards.


Details:

  • 1 inch and 2 inch Nominal Thick Panels (where the product is quilted the thickness is compressed some)

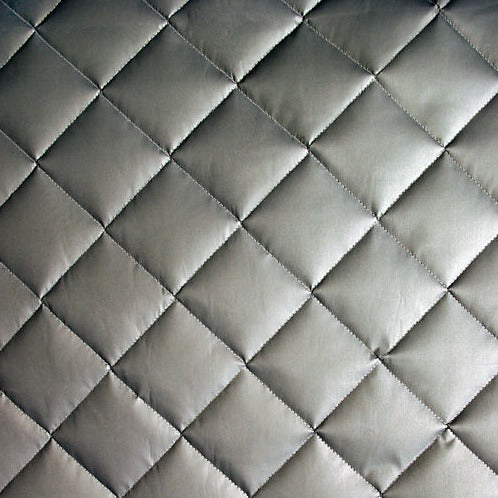

  • Vinyl Coated Material Quilted Over Fiberglass Substrate
  • Hemmed on All Four Sides
  • #2 Brass Grommets set 1 ft on Top & 2 ft on Sides

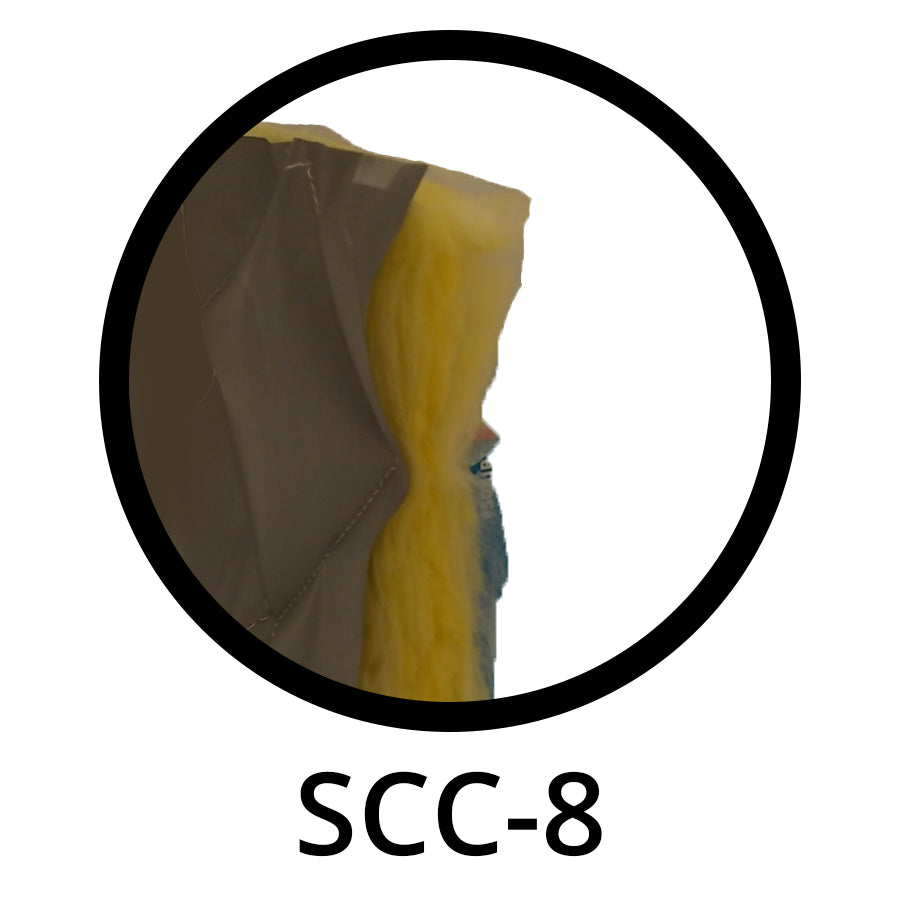

  • SCC-8 - 1 in Thick - NRC -.75 (See More Details in Technical Specs)

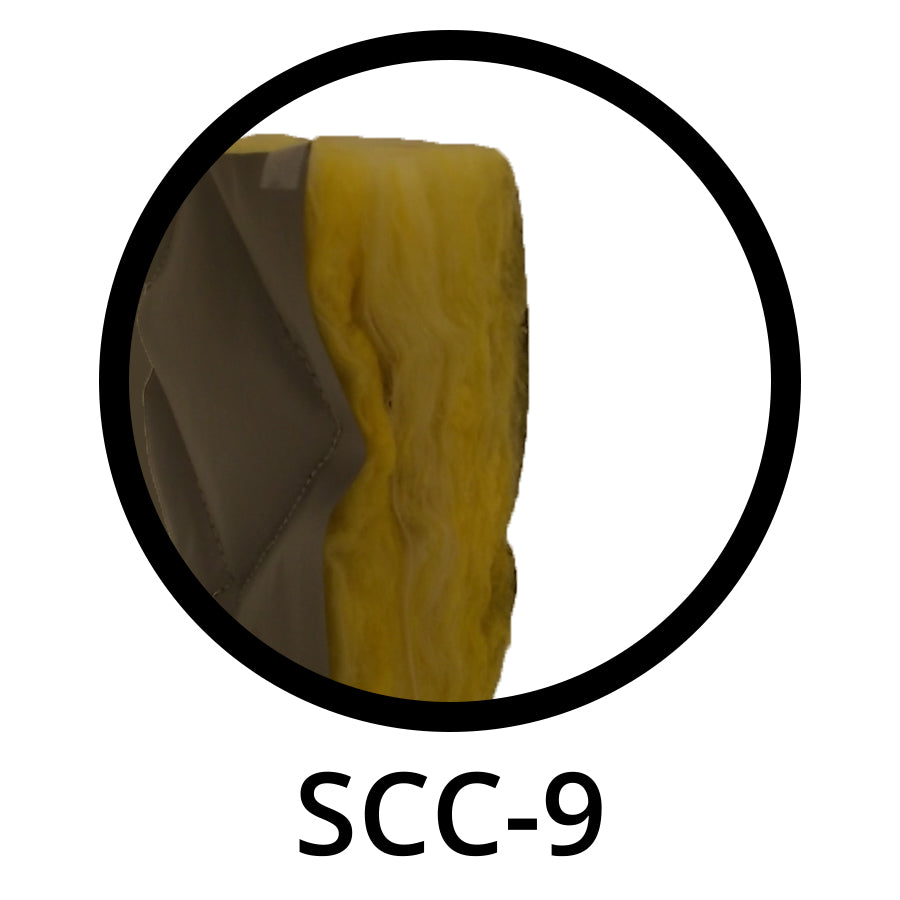

  • SCC-9 - 2 in Thick - NRC -.86 (See More Details in Technical Specs)



            SOUND ABSORPTION (HZ) PER ASTM C423

Model Number

Thickness

125

250

500

1000

2000

4000

NRC
SCC-8 1″ 0.12 0.47 0.85 0.84 0.64 0.62 0.75
SCC-9 2″ 0.19 0.99 0.96 0.80 0.57 0.33 0.86



            SOUND TRANSMISSION LOSS (HZ) PER ASTM E90-75

Model Number

Thickness

125

250

500

1000

2000

4000

STC

SCC-9 2″ 11 16 24 30 35 35 27




Applications Acoustic Blankets

  • Restaurants
  • Reception halls
  • Office environments
  • Recording studios
  • Gyms
  • Home theaters
  • Museums and exhibits
  • Classrooms and schools
  • Auditoriums and assembly halls
  • Interview rooms
  • Churches and houses of worship



Ships in 5 - 8  Business Days






SIZES W x H

1 in THICK PANELS                                                         2 in THICK PANELS




4 ft x 4 ft,    4 ft x 6 ft,                                                   4 ft x 4 ft,    4 ft x 6 ft,

4 ft x 8 ft,    4 ft x 10 ft                                                   4 ft x 8 ft,    4 ft x 10 ft

COLORGray                                                                                     Gray
MATERIAL

1 in Quilted Fiberglass                                                    2 in  Quilted Fiberglass

(Finished One Side)                                                      (Finished Both Sides)

GROMMETS


1 ft O. C. on Top                                                                 1 ft O. C. on Top

2 ft O. C. on Sides                                                              2 ft O. C. on Sides

NOISE RED. COEFFICIANT (NRC).75                                                                                       .86
WITHSTAND TEMP.180 Degrees F                                                                    180 Degrees F
CHEMICAL RESISTANCE

Water & Mildew                                                                   Water & Mildew
WEIGHT

.25 lb / Sq. Ft.                                                                     .50 lb / Sq. Ft.
FLAME RESISTANCE ASTM E-84 Class I                                                            ASTM E-84 Class I
