I-Beam Curtain Track Connectors for Warehouse & Factory Structural Steel

Beam flange curtain track hardware from Steel Guard Safety is designed for mounting industrial curtain track directly to I-beams and structural steel flanges — the most common overhead structure in warehouses, manufacturing plants, and large industrial facilities. All hardware is made from USA made 16 gauge rust resistant galvanized steel. Add track lengths, rollers, and end stops from our universal mount page to build your complete custom commercial or industrial curtain track system.

Beam flange connectors are available in single in-line, right-angle, and 3-way configurations for straight runs, 90-degree turns, and T-junction installations. Plain curved track is also available for smooth curved configurations around equipment or room corners.

See Other Curtain Track Hardware

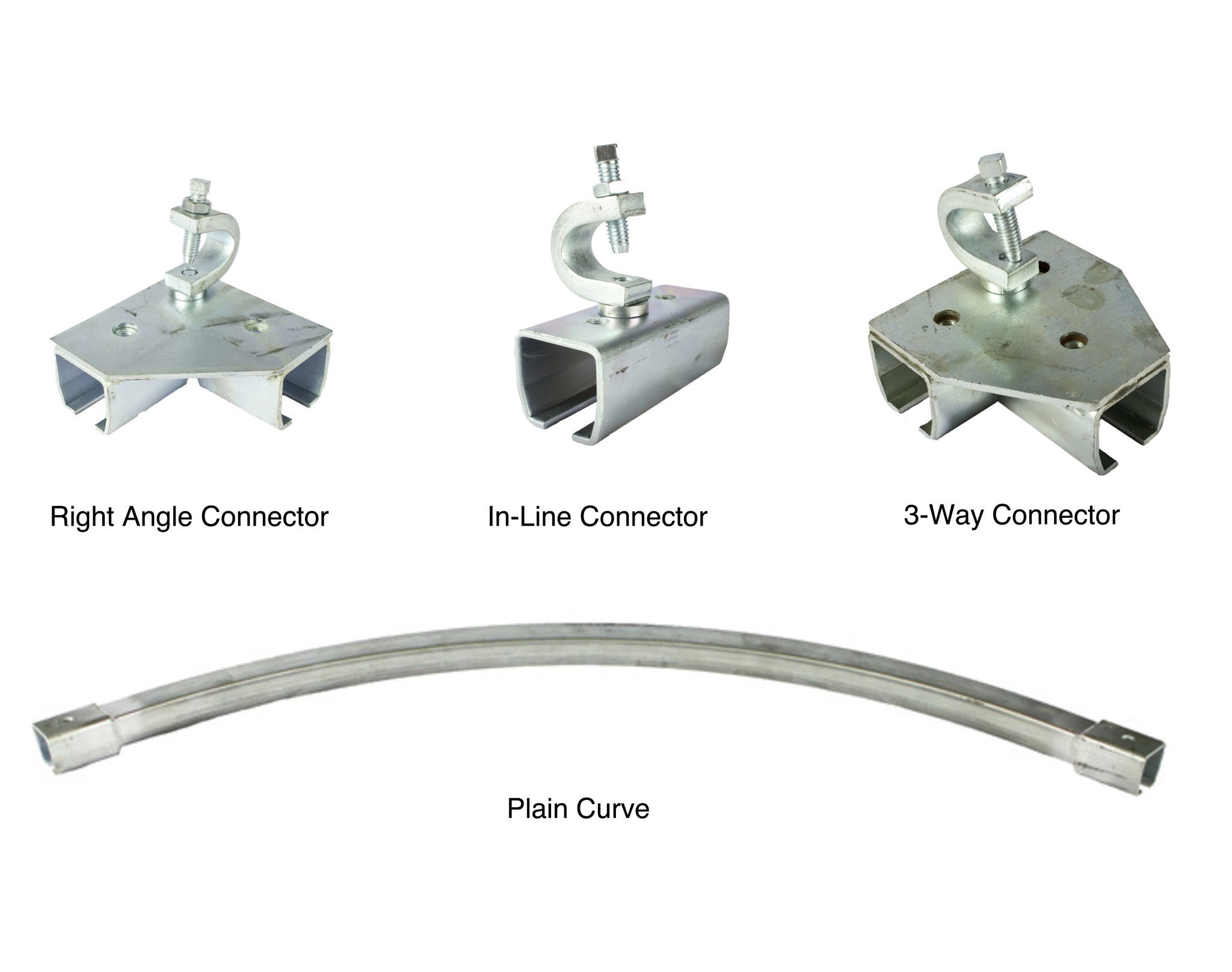

Available Beam Flange Mount Variants:

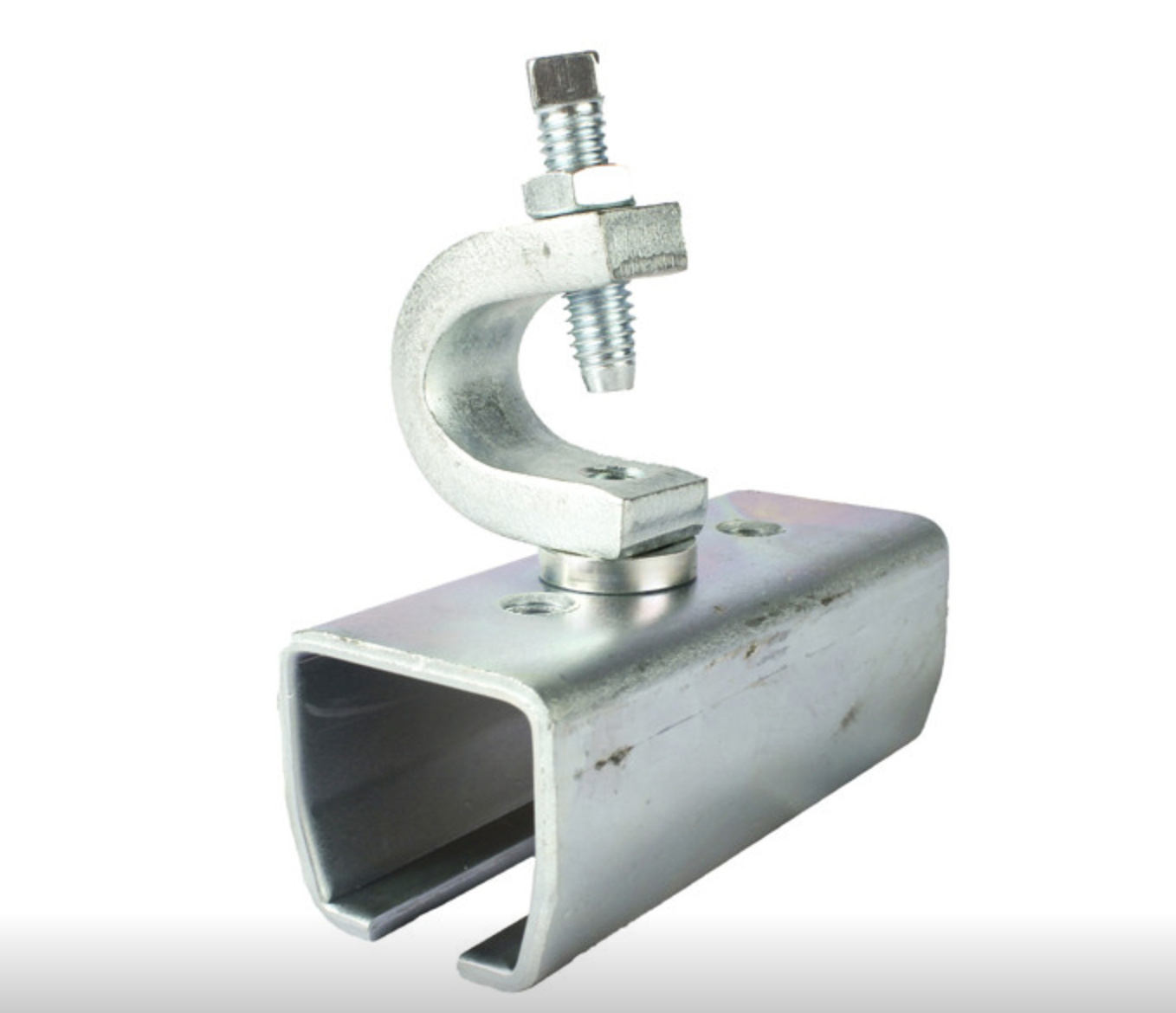

Beam Flange In-Line Connector — TH C101 — for straight track runs mounted to beam flange

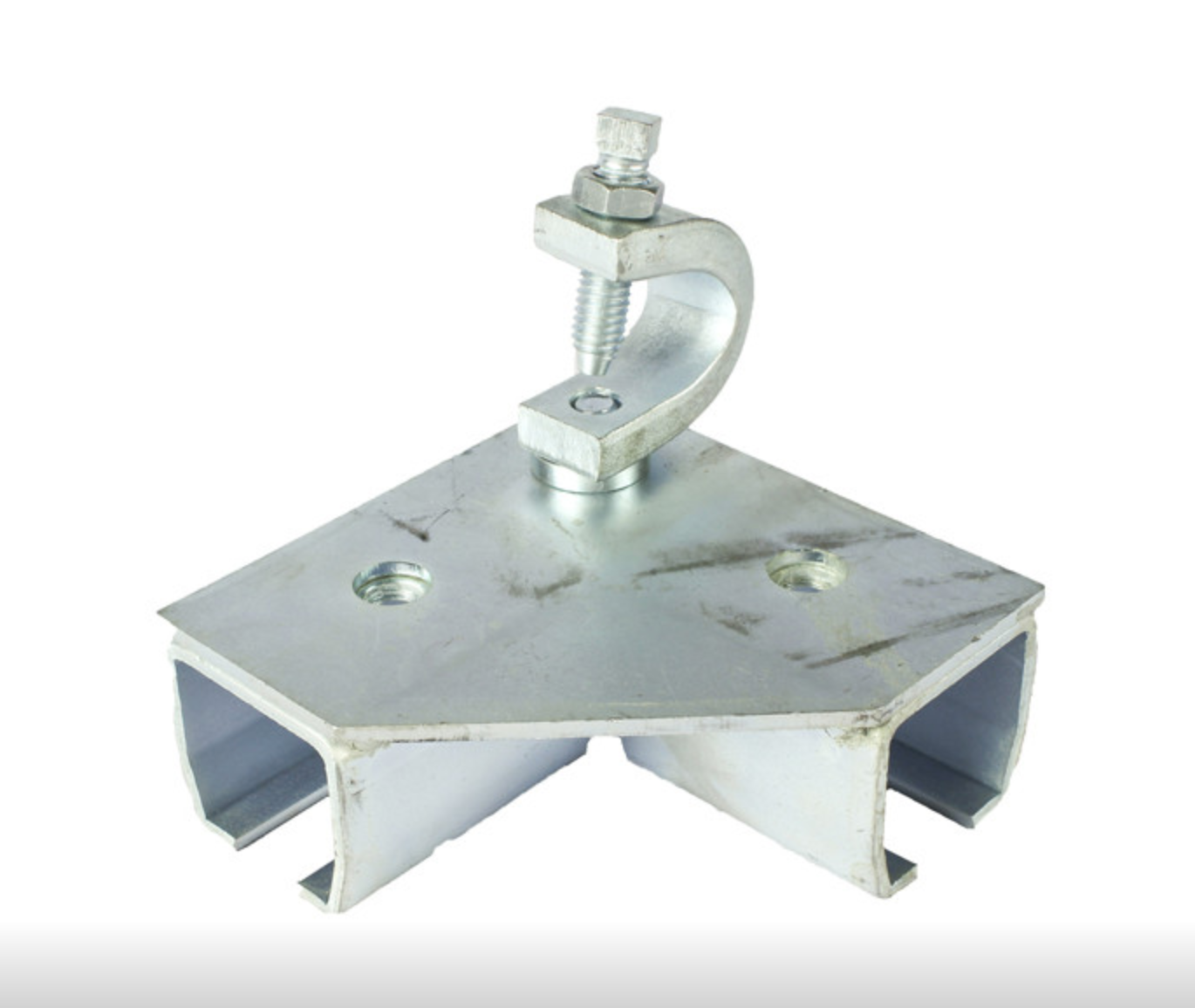

Beam Flange Right-Angle Connector — TH C102 — for 90-degree corner turns on beam flange

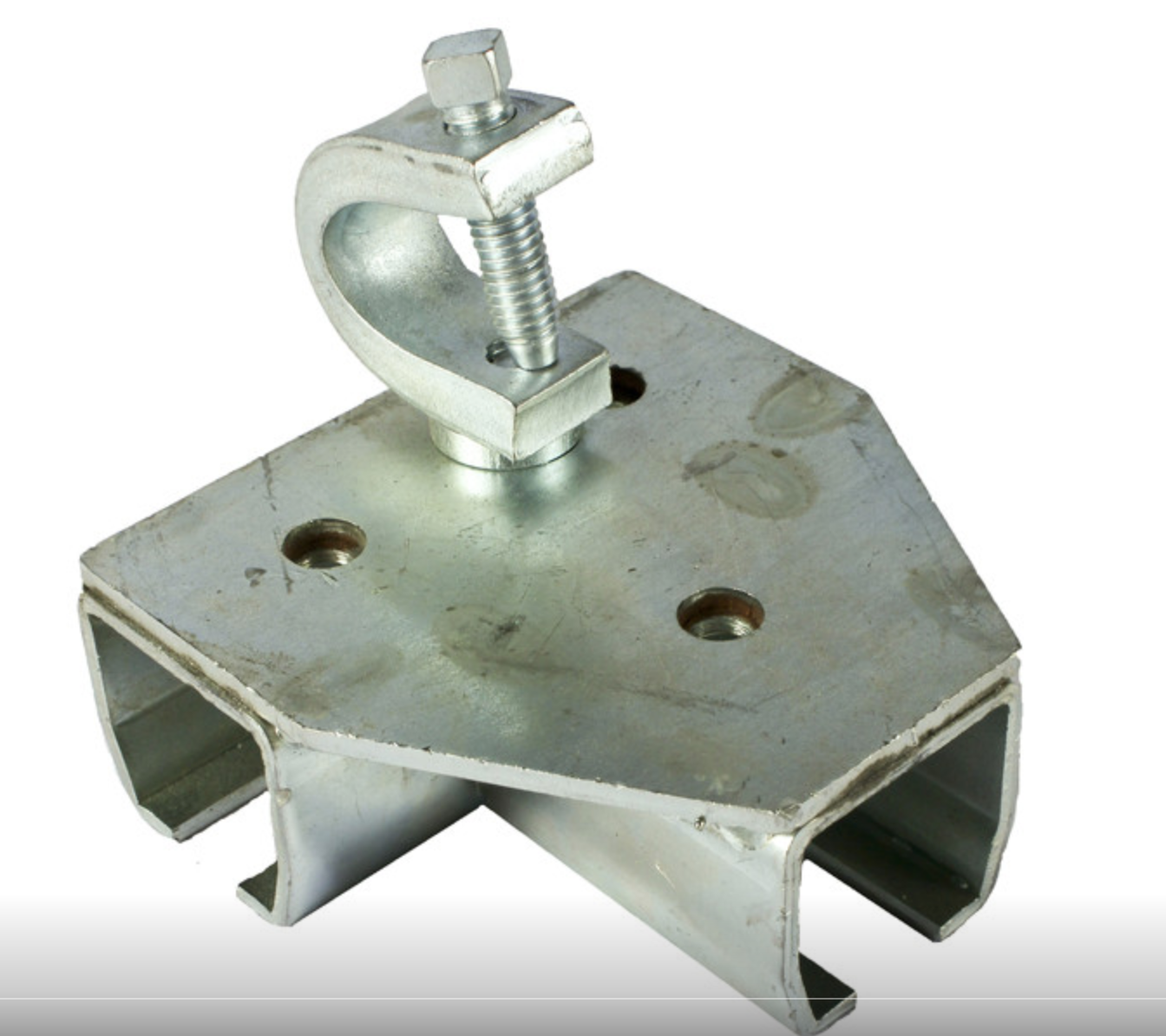

Beam Flange 3-Way Connector — TH C103 — for T-junction configurations on beam flange

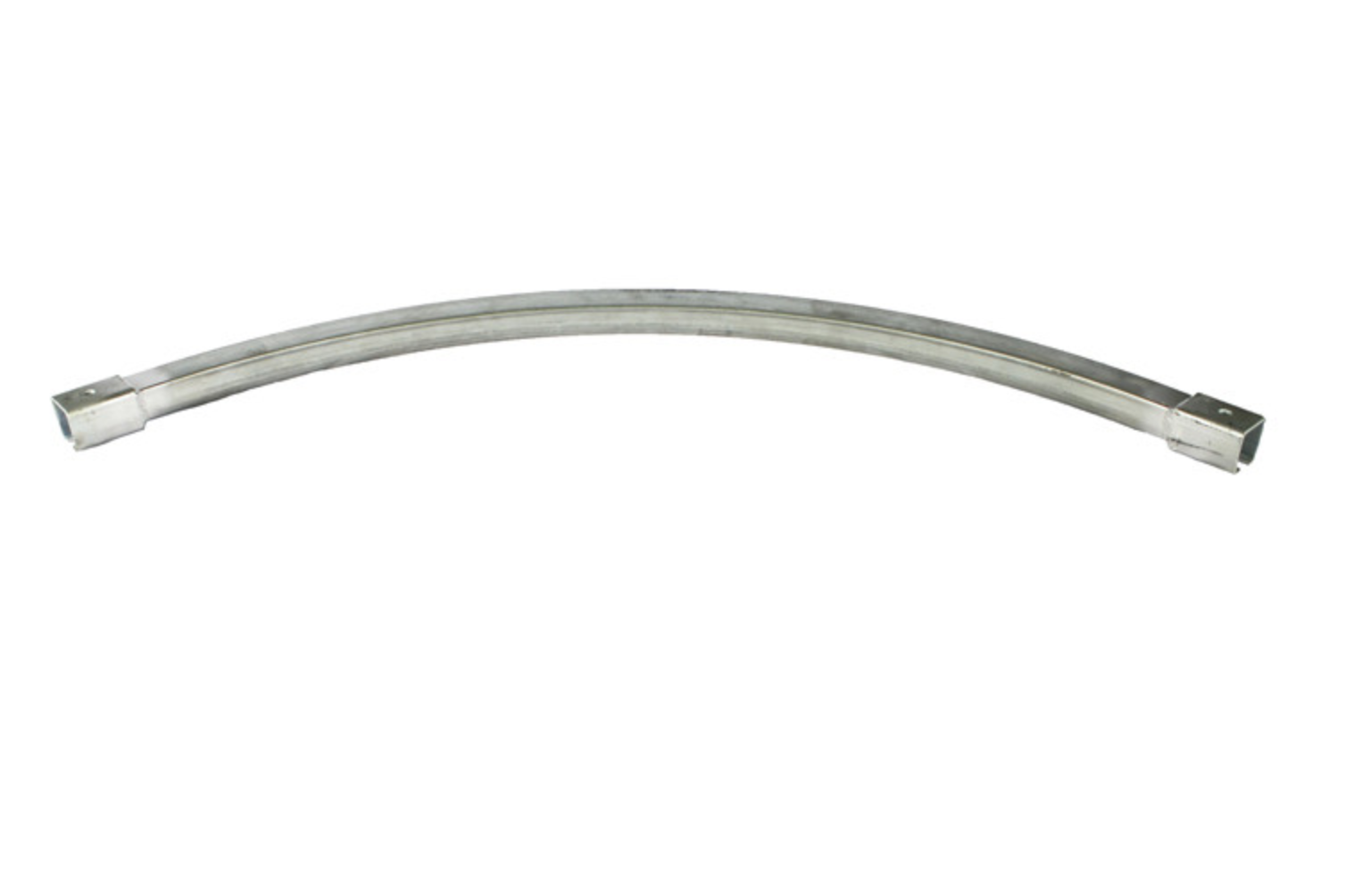

Plain Curved Track — TH C001 — for smooth curved track sections

Other mounting types and track accessories also available:

Universal Mount — Track, Rollers & End Stops
Threaded Rod Mount Hardware
Ceiling Mount Hardware
Wall Mount Hardware

Ships In: 1 - 2 Days

Frequently Asked Questions — Beam Flange Curtain Track Hardware

What is beam flange curtain track hardware?

Beam flange curtain track hardware consists of connector brackets that clamp or mount to the bottom flange of I-beams and wide flange structural steel sections. Rather than requiring holes drilled into a concrete ceiling, the beam flange connectors attach directly to the existing steel overhead structure — making installation faster and eliminating the need for drop hardware in facilities with exposed steel beams.

What connector configurations are available for beam flange mounting?

We carry three connector types: the in-line connector (TH C101) for straight track runs, the right-angle connector (TH C102) for 90-degree turns, and the 3-way connector (TH C103) for T-junction configurations where a track run splits in two directions. Plain curved track (TH C001) is also available for smooth curved sections.

Do I need to buy track lengths and rollers separately?

Yes — this product page covers the beam flange connectors and curved track only. Track lengths, nylon and steel roller hooks, and end stops are available on our Universal Mount — Track, Rollers & End Stops page. Both sets of components work together as part of the same modular track system.

What gauge steel are the beam flange connectors made from?

All beam flange curtain track hardware is made from USA made 16 gauge rust resistant galvanized steel — the same specification as the rest of the Strong Arm curtain track hardware line.
