Wall Mount & Suspended Curtain Track Flex-I-Trac 132 ADC

In Stock

$5.09

Ships in 1 - 2 Business days.

SKU : TR130010

vendor : Automatic Devices Company (ADC)

Product Type : Curtain Track System

Part Type

Units

in stock SOLD OUT

FLEX-I-TRAC® Flexible Suspended Curtain Track System — Wall Mount & Pipe Backbone Installation

The Wall Mount & Suspended Curtain Track Flex-I-Trac 132 ADC is a versatile light to medium duty cyclorama I-beam track designed for walk-along curtain operation without cords, pulleys, or master carriers — in installations where the track is mounted to a wall or suspended from a pipe backbone rather than attached directly to the ceiling surface. This suspended curtain track system is ideal for stage and TV studio curtains, industrial welding booth enclosures, and any application requiring a flexible curtain track that cannot be ceiling-mounted.

The Flex-I-Trac 132 ADC track channel can be curved on-site to virtually any degree (minimum 2-foot radius) or factory curved at 12-inch radius to custom layouts. This page covers the wall mount and suspended installation hardware set, which includes hanging clamps, threaded rod adapters, and universal wall brackets not available in the ceiling mount version. For the ceiling-only version, see Ceiling Mount Curtain Track Flex-I-Trac 132 ADC.

Key Features

• Wall & Suspended Installation — Mounts to walls or suspends from pipe backbone, threaded rod, or structural members where ceiling attachment is not available
• Flexible Curving — Track curves on-site or factory curved to virtually any degree, minimum 2-foot radius
• Walk-Along Operation — No cords, pulleys, or master carriers required
• Expanded Hardware Set — Includes hanging clamps, threaded rod adapters, and universal wall brackets specific to suspended and wall mount configurations
• Manufactured by ADC — Automatic Devices Company commercial and industrial curtain track systems

Installation Tips

• Use 1 carrier per foot of track for reliable support and smooth curtain operation
• For suspended installations, secure the track to a pipe backbone or use hanging clamps and threaded rod adapters for drop mounting
• Wall brackets (universal or with strut channel) are available for direct wall face attachment

Available Components — Wall Mount & Suspended

Includes all standard Flex-I-Trac 132 ADC components plus the following wall and suspended-specific hardware:

• Single Carrier — 1301

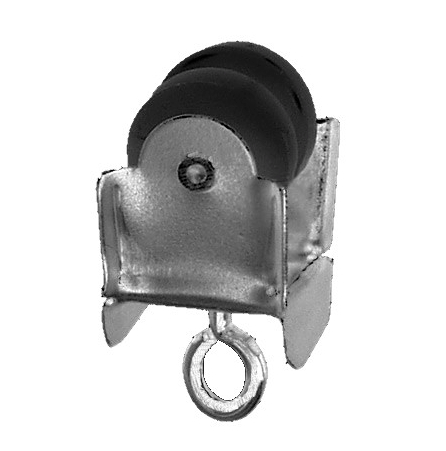

• Bumper Single Carrier — 1301-A

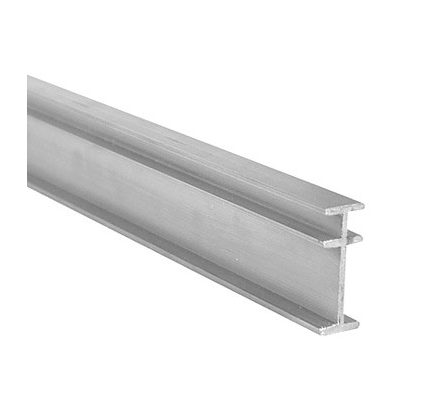

• Flex-I-Track 10 ft Length — 1300-10

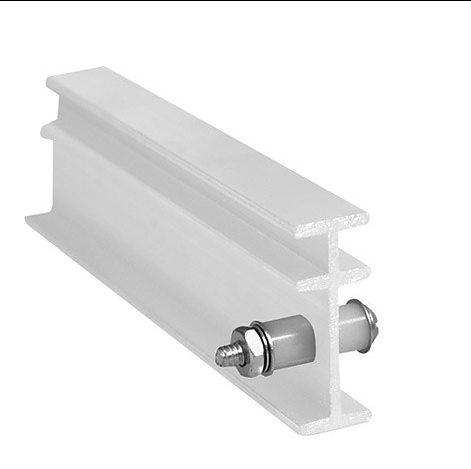

• End Stop — 1309

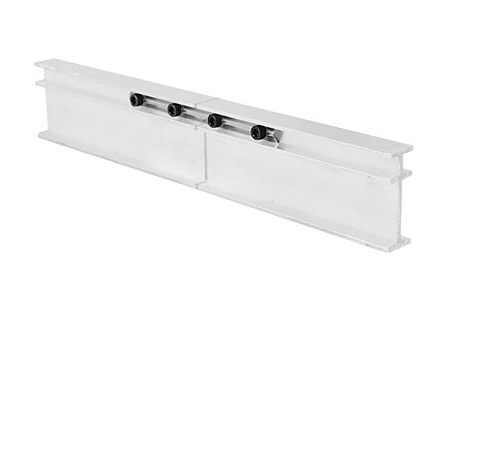

• Splicing Clamp — 1324

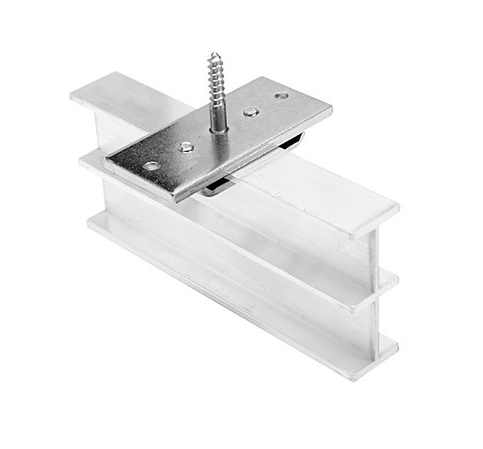

• Ceiling Mount Clamp 1178

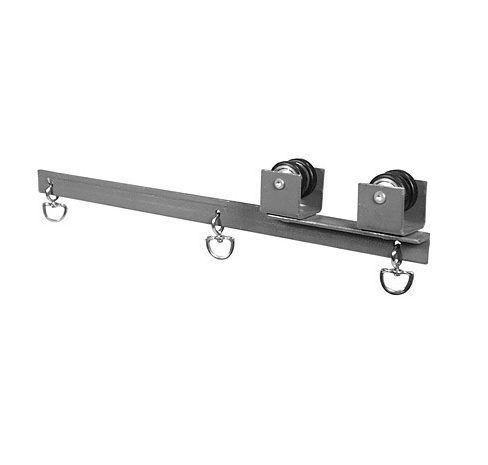

• Master Carrier — 1302

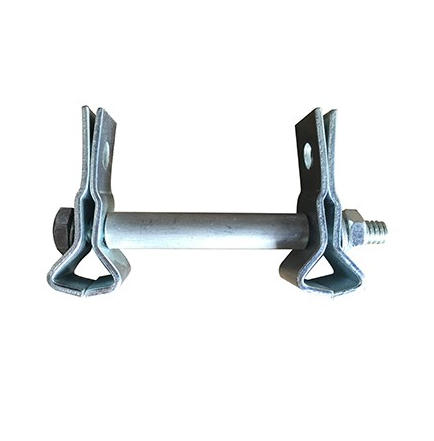

• Lap Clamp — 1307

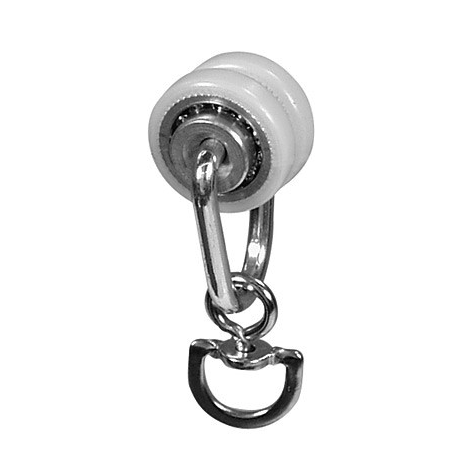

• Nylon Ball Bearing Carrier — 1337

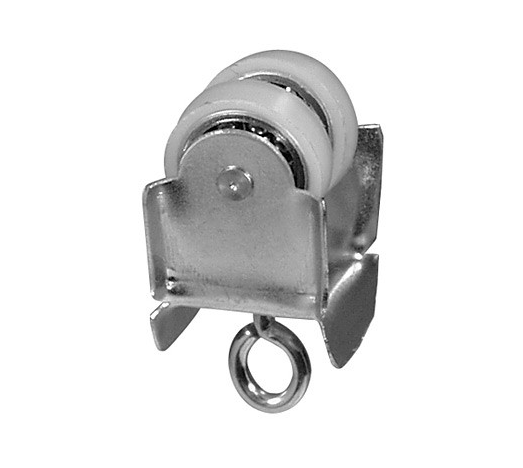

• Nylon Bumper Ball Bearing Carrier — 1337-A

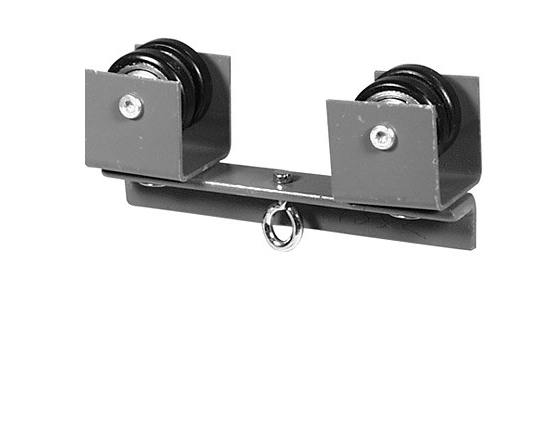

• Nylon Ball Bearing Master Carrier — 1352

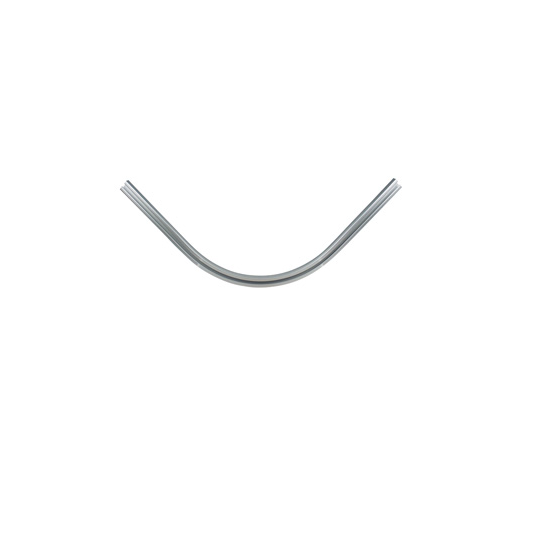

• 90 Degree Curve 2ft x 2ft — 1167

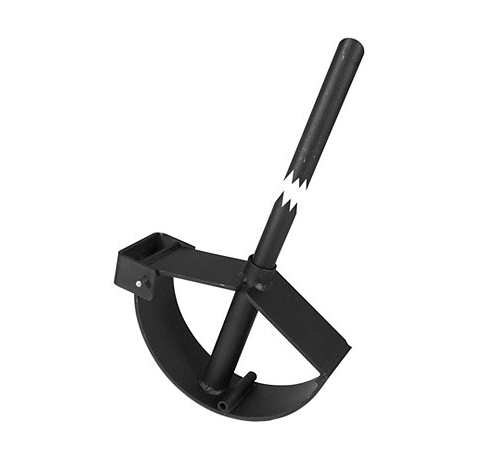

• BT1 Bending Tool

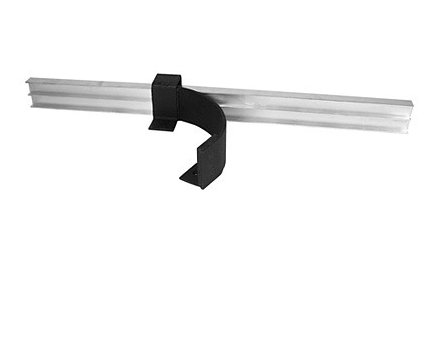

• BT2 Bending Tool

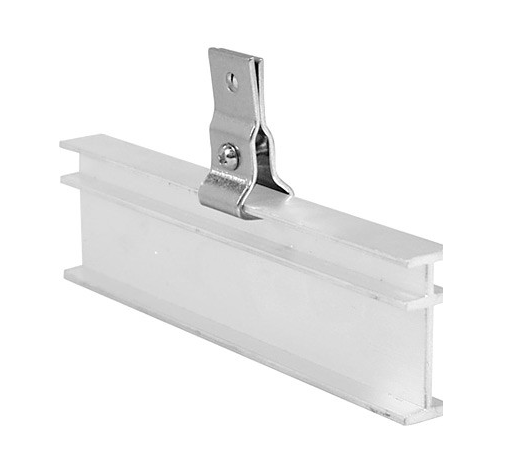

• Hanging Clamp — 1308 (wall/suspended specific)
• Threaded Rod Adapter — 1308-A (wall/suspended specific)

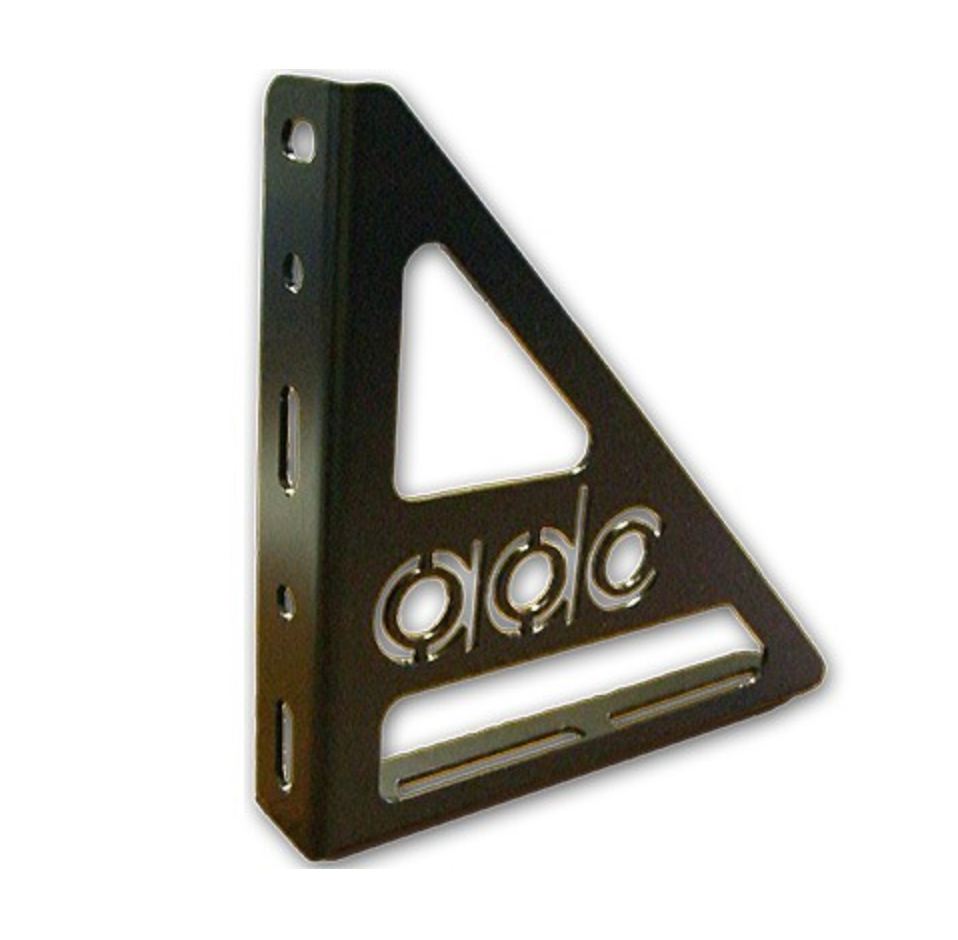

• Universal Wall Bracket — 1383-UNI (wall/suspended specific)

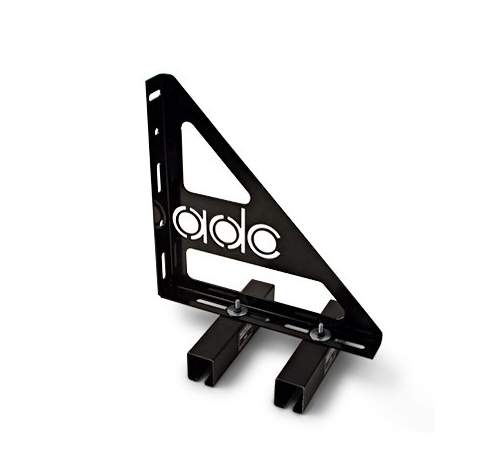

• Universal Wall Bracket w/ Strut Channel — 1483-UNI (wall/suspended specific)

Need a Custom Track System?

Ordering a Flex-I-Trac system for a complex stage, studio, or industrial curtain layout? Submit a request for a custom track system quote online. Our team will contact you to confirm dimensions and guide you through component selection for your suspended or wall mount configuration.

See Other Curtain Track Hardware

Ships In: 2 - 3 Days

Frequently Asked Questions — Wall Mount & Suspended Flex-I-Trac 132 ADC

What is the difference between this page and the ceiling mount version?

Both use the same Flex-I-Trac 132 ADC track channel and standard component set. This wall mount and suspended version includes four additional hardware items specific to non-ceiling installations: the Hanging Clamp 1308, Threaded Rod Adapter 1308-A, Universal Wall Bracket 1383-UNI, and Universal Wall Bracket with Strut Channel 1483-UNI. Choose this version when the track needs to mount to a wall face or suspend from a pipe backbone or threaded rod rather than attach directly to the ceiling surface. For ceiling-only installations see the Ceiling Mount version.

What does "suspended curtain track" mean?

A suspended curtain track hangs from an overhead structure — such as a pipe backbone, threaded rod, or beam — rather than mounting directly to the ceiling surface. This is useful when the ceiling is too high, when the track needs to run at a specific height below the ceiling, or when the ceiling surface cannot accept direct attachment. The Hanging Clamp 1308 and Threaded Rod Adapter 1308-A on this page are the primary hardware components for suspended installations.

What is the Flex-I-Trac 132 ADC used for?

The Flex-I-Trac 132 ADC is a light to medium duty cyclorama I-beam curtain track designed for walk-along operation without cords, pulleys, or master carriers. Common applications include stage and TV studio curtains, industrial welding booth enclosures, and flexible curtain partition systems where the track needs to curve around equipment or room corners.

Can the track be curved for non-linear installations?

Yes — the Flex-I-Trac 132 ADC track can be curved on-site to virtually any degree with a minimum radius of 2 feet, or factory curved at 12-inch radius for complex custom layouts. Contact our team for factory curving pricing and lead time.

How many carriers are needed per foot of track?

The recommended specification is 1 carrier per foot of track for reliable support and smooth curtain operation.

How long does it take to ship?

Ships in 2-3 business days.
